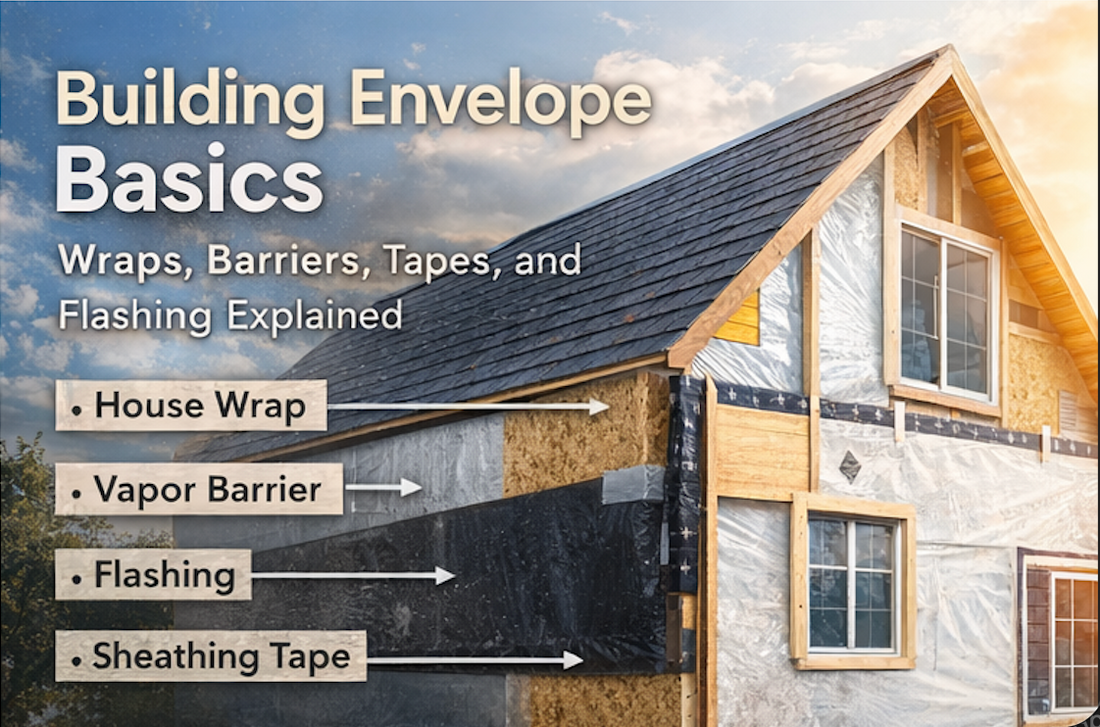

Building Envelope Basics: Wraps, Barriers, Tapes, and Flashing Explained

May 24, 2026

The building envelope is one of the most important parts of any structure. It separates the conditioned interior from the outside environment and helps control water, air, heat, vapor, and overall durability. When the envelope is designed and installed correctly, it helps protect the building from moisture intrusion, air leakage, energy loss, and long-term damage.

But the building envelope is not a single product. It is a system.

House wraps, water-resistive barriers, air barriers, vapor barriers, flashing tapes, sealants, and transition details all work together to protect walls, roofs, windows, doors, and penetrations. If one layer is missing, poorly installed, or not connected to the next layer, the entire system can underperform.

This guide explains the basics of building envelope materials and how wraps, barriers, tapes, and flashing products work together on real residential and commercial projects.

What Is the Building Envelope?

The building envelope is the physical separation between the inside and outside of a building. It includes exterior walls, roof assemblies, windows, doors, foundations, floors over unconditioned spaces, and all the details where those parts connect.

A strong building envelope helps manage several key control layers:

Bulk water control
Air leakage control
Thermal control
Water vapor control
Moisture drainage
Weather resistance
Durability around openings and penetrations

In practical terms, the building envelope is what helps keep rain out, conditioned air in, moisture under control, and insulation performing as intended. The U.S. Department of Energy notes that minimizing air movement in and out of a home is a key part of energy-efficient construction and that air sealing must be considered together with insulation, moisture control, and ventilation as part of a whole-house systems approach.

For contractors and builders, this means envelope materials should not be selected one at a time without thinking about how they connect. A wrap is only as good as its seams. A flashing tape is only effective if it is layered correctly. A vapor barrier can help in the right assembly, but it can also create problems if placed incorrectly for the climate.

The Four Main Control Layers

A building envelope usually works through four major control layers: water, air, thermal, and vapor. These layers often overlap, but they do not always perform the same job.

Water Control Layer

The water control layer is designed to manage bulk liquid water, such as rain that gets behind cladding. In walls, this layer is often a water-resistive barrier, also called a WRB. It helps direct water down and out of the assembly before it can damage sheathing, framing, or insulation.

Air Control Layer

The air control layer helps reduce uncontrolled air movement through the building envelope. Air leakage can carry heat, moisture, dust, and pollutants. It can also reduce insulation performance and increase heating and cooling loads.

Thermal Control Layer

The thermal control layer is usually insulation. It slows heat flow through walls, roofs, ceilings, floors, and other building assemblies. Insulation works best when it is continuous, properly installed, and supported by strong air and moisture control.

Vapor Control Layer

The vapor control layer manages water vapor diffusion through materials. This is different from air leakage. Building Science Corporation explains that vapor barriers are intended to retard vapor migration, while air barriers are intended to control air movement; the location and permeability of vapor control materials depend on climate, assembly materials, and interior conditions.

This distinction matters. Many project problems come from confusing a water barrier, air barrier, and vapor barrier as if they were the same thing. They are related, but they are not interchangeable.

House Wrap and Building Wrap: What It Does

House wrap, also called building wrap, is commonly installed over exterior sheathing and behind siding, cladding, or other exterior finishes. Its main job is to help protect the wall assembly from bulk water while allowing the wall to dry when moisture vapor is present.

A high-quality building wrap can help resist wind-driven rain, reduce air infiltration, and support a more durable building envelope. DuPont describes Tyvek HomeWrap as having tiny pores that resist bulk water and air penetration while allowing moisture vapor to pass through.

That balance is important. In many wall assemblies, the building wrap needs to help block exterior water while still allowing vapor to escape so the wall can dry. If the wrong material is used or if it is installed incorrectly, moisture can become trapped inside the assembly.

Building wrap is commonly used for:

Exterior wall sheathing protection
Siding and cladding backup
Air and water control support
Residential construction
Commercial wall assemblies
Wood-framed walls
Renovation and exterior replacement projects

Building wrap is not decorative. It is a functional layer that sits behind the visible exterior finish. Once the siding or cladding is installed, the wrap is hidden, but its role remains critical.

Water-Resistive Barriers: The Drainage Layer Behind the Cladding

A water-resistive barrier, or WRB, helps prevent liquid water from entering the wall assembly. WRBs are commonly installed behind siding, brick veneer, stucco, fiber cement, and other exterior claddings.

The goal is not to assume that cladding will stop every drop of water. Most exterior claddings can allow some moisture through joints, laps, cracks, or transitions. The WRB provides a second line of defense by helping water drain down and away.

A good WRB strategy should consider:

Proper overlap
Continuous coverage
Taped seams
Integration with flashing
Penetration detailing
Transitions to roofs, windows, doors, decks, and foundations
Compatibility with cladding and insulation systems

DuPont’s installation guidance emphasizes maintaining WRB continuity through the building envelope and using proper overlaps at seams, penetrations, terminations, and transitions to maintain a continuous drainage plane.

This is why WRB installation is not just “wrap the wall and move on.” The details matter. If water reaches the WRB, it must have a clear path to drain out.

Air Barriers: Controlling Unwanted Air Movement

An air barrier is designed to reduce uncontrolled air leakage through the building envelope. Air leakage is more than an energy issue. It can also move moisture into wall cavities, which may contribute to condensation and durability problems.

Air barriers can be made from different materials depending on the assembly. In some projects, the WRB may also serve as part of the air barrier system. In other projects, the air barrier may be a separate membrane, sealed sheathing system, fluid-applied product, foam layer, or interior air control layer.

The key word is continuity.

An air barrier must connect across walls, roofs, foundations, windows, doors, and penetrations. A material may be an air barrier in the lab, but the building only performs well if the installed system is continuous and sealed.

Common air barrier details include:

Taped sheathing seams
Sealed building wrap seams
Flashing around windows and doors
Sealed penetrations
Transition membranes
Compatible sealants
Continuity between wall and roof assemblies

If air can move freely through gaps, cracks, penetrations, or unsealed transitions, insulation performance can suffer and moisture risks may increase.

Vapor Barriers and Vapor Retarders: Why Placement Matters

Vapor barriers and vapor retarders help control water vapor diffusion through building materials. They are often misunderstood because people use the phrase “vapor barrier” for many different products.

The most important point is this: vapor control depends on climate and assembly design.

A vapor barrier that works well in one climate may be wrong for another. In hot-humid climates, cold climates, mixed climates, air-conditioned buildings, and high-humidity interior spaces, vapor control strategy can vary significantly.

Building Science Corporation explains that the function of a vapor barrier is to slow water vapor migration, and that its placement and permeability depend on climate, assembly materials, and interior conditions. It also makes clear that vapor barriers are not typically intended to stop air movement; that is the job of air barriers.

Vapor control products may be relevant for:

Crawl spaces
Foundations
Slabs
Basement walls
Certain roof assemblies
Cold-climate wall assemblies
High-humidity interior environments
Specialized commercial applications

The wrong vapor strategy can trap moisture. Before selecting a vapor barrier, consider the climate, wall design, insulation type, exterior cladding, HVAC conditions, and code requirements.

Tapes: Small Products, Big Role

Tapes may look like a minor accessory, but they are critical to building envelope performance. A wrap or barrier system depends on sealed seams, laps, penetrations, and transitions. That is where tape comes in.

Building envelope tapes are used to:

Seal house wrap seams
Repair tears in WRB material
Seal around penetrations
Connect barrier materials
Improve air barrier continuity
Support window and door flashing systems
Seal transitions between materials

Not all tapes are the same. The right tape depends on the surface, temperature, exposure, moisture conditions, and manufacturer compatibility. A general-purpose tape may not perform like a building envelope tape designed for long-term adhesion and weather exposure.

DuPont describes high-performance tapes and flashing systems as creating air- and watertight seals around windows, doors, and penetrations, and says advanced flashing tapes integrate with water-resistive wraps to enhance building envelope performance.

For real projects, tape selection should not be an afterthought. Using compatible tapes with the wrap or barrier system helps reduce failures at seams and transitions.

Flashing: Protecting the Most Vulnerable Areas

Flashing is used to direct water away from vulnerable parts of the building envelope. Windows, doors, roof-wall intersections, decks, penetrations, and cladding transitions are common leak points. Flashing helps manage water at these locations.

Flashing can include:

Window flashing tape
Door flashing tape
Sill pans
Head flashing
Drip caps
Metal flashing
Flexible flashing
Self-adhered flashing membranes
Liquid-applied flashing
Transition membranes

The purpose of flashing is simple: water should move down and out, not into the wall.

Installation sequence matters. Flashing should be layered so upper materials overlap lower materials, allowing water to drain outward. This is often described as shingling. DuPont’s WRB installation guidance specifically notes positive shingling: flashing products or tape should be installed from the bottom of penetrations to the top, with the upper layer installed over the lower layer.

In practice, this means window and door openings require careful planning. A poorly flashed opening can allow water into the wall even if the rest of the WRB is installed correctly.

How Wraps, Barriers, Tapes, and Flashing Work Together

The building envelope performs best when each material is treated as part of one connected system.

A simplified wall assembly might work like this:

Exterior cladding sheds most rain.
Any water that gets behind the cladding reaches the WRB.
The WRB directs water down and out.
Flashing protects windows, doors, and penetrations.
Tapes seal seams, laps, and transitions.
The air barrier reduces uncontrolled air leakage.
Insulation controls heat flow.
Vapor control materials manage vapor diffusion where needed.

No single product does everything. A building wrap may help resist water and air, but it still needs properly taped seams and correctly integrated flashing. A flashing tape may be strong, but it still needs to be installed in the right sequence. A vapor barrier may be useful, but it must be placed according to climate and assembly design.

The best building envelope is not the one with the most products. It is the one where the right products are selected, sequenced, and connected correctly.

Common Building Envelope Mistakes

1. Treating House Wrap as Waterproofing

House wrap helps manage water, but it is not a substitute for proper flashing, drainage, and cladding design. If water is directed behind the wrap or trapped by poor detailing, problems can still occur.

2. Skipping Seam Tape

Unsealed seams can reduce the effectiveness of a WRB or air barrier system. Taping seams helps maintain continuity.

3. Poor Window and Door Flashing

Windows and doors are among the most common water intrusion points. Flashing must be installed in the correct order and integrated with the WRB.

4. Confusing Vapor Barriers With Air Barriers

Vapor barriers slow vapor diffusion. Air barriers control air movement. They may sometimes overlap in function, but they are not the same thing.

5. Ignoring Climate

A wall assembly in a hot-humid climate may need a different vapor strategy than a cold-climate assembly. Climate, drying potential, and HVAC conditions all matter.

6. Mixing Incompatible Products

Some tapes, sealants, and membranes may not bond properly to certain wraps, sheathing, or substrates. Check manufacturer compatibility before installation.

7. Forgetting Penetrations

Pipes, vents, lights, outlets, fasteners, and mechanical penetrations all interrupt the envelope. Each one needs to be sealed and flashed properly.

Choosing the Right Building Envelope Products

When selecting building envelope materials, start with the assembly and the project goals.

Ask these questions:

Is this a residential or commercial project?
What cladding system will be installed?
Does the wall need to dry outward, inward, or both?
Is the project in a humid, cold, mixed, or coastal climate?
Will the WRB also serve as an air barrier?
What tapes and flashing products are compatible with the wrap?
How will windows and doors be integrated?
Are there many penetrations?
Does the project require vapor control?
What does the code or project specification require?

For many contractors, the practical goal is to choose a system that is available, compatible, easy to install correctly, and suited to the project’s climate and cladding.

Residential vs Commercial Building Envelope Needs

Residential Projects

Residential building envelope work often focuses on protecting exterior walls, reducing drafts, improving comfort, and preventing moisture-related issues. Common materials include building wrap, flashing tape, window and door flashing, vapor barriers for specific areas, and insulation products.

For homes, attention to detail around windows, doors, roof-wall intersections, and penetrations can make a major difference in long-term durability.

Commercial Projects

Commercial building envelope projects may involve larger wall areas, more complex transitions, stricter specifications, and higher performance expectations. Air barrier continuity, vapor control, fire-rated assemblies, and compatibility between multiple trades can become more important.

Commercial projects often require more detailed product submittals, approved systems, and careful coordination between framing, sheathing, waterproofing, insulation, window, and cladding installers.

Product Availability and Jobsite Timing

Building envelope materials are often needed at very specific stages of a project. If wrap, tape, flashing, or barrier products are missing, the next trade may not be able to move forward.

That is why product availability matters.

Contractors may need:

Building wrap before siding or cladding
Flashing tape before window and door installation
Seam tape before inspection or enclosure
Vapor barriers before slab, crawl space, or foundation work
Water-resistive barriers before exterior finishes
Accessories and fasteners to complete the system

Years Building Materials helps contractors, builders, and businesses source building envelope products, insulation, drywall, roofing materials, tapes, flashing, waterproofing products, and related accessories. If you are working on a project and need to confirm availability, our team can help you compare options and prepare a quote.

Final Thoughts

The building envelope is not just a layer behind the siding. It is a complete system that helps control water, air, heat, and vapor. Wraps, barriers, tapes, and flashing products all play different roles, but they must work together.

Building wrap helps protect wall assemblies from water and air intrusion while supporting drying. Water-resistive barriers provide a drainage plane behind cladding. Air barriers reduce uncontrolled air movement. Vapor barriers and vapor retarders help manage vapor diffusion when used in the right climate and assembly. Tapes and flashing products connect the system at seams, windows, doors, and penetrations.

Before choosing materials, look at the entire project: climate, cladding, insulation, wall assembly, openings, penetrations, code requirements, and installation sequence. A strong envelope starts with the right products, but it depends on correct detailing.

Need Building Envelope Materials for Your Project?

Years Building Materials supplies building wraps, water-resistive barriers, tapes, flashing products, insulation, roofing materials, drywall, waterproofing products, and building envelope accessories for residential and commercial projects.

Tell us what you are building, where the project is located, what materials you need, and when you need them. Our team can help check availability, compare product options, and prepare a quote.

Shop Building Envelope Products
Shop Tapes and Flashing
Request a Quote

FAQ

What is the building envelope?

The building envelope is the physical separation between the interior and exterior of a building. It includes walls, roofs, windows, doors, foundations, and the materials that help control water, air, heat, and vapor.

What does house wrap do?

House wrap helps protect exterior wall assemblies from bulk water and air infiltration while often allowing moisture vapor to escape. It is usually installed over exterior sheathing and behind siding or cladding.

Is house wrap the same as a vapor barrier?

No. House wrap and vapor barriers are different. House wrap usually functions as a water-resistive barrier and may also help with air control. A vapor barrier is designed to slow water vapor diffusion. Vapor barrier placement depends on climate and wall assembly design.

What is a water-resistive barrier?

A water-resistive barrier, or WRB, is a material installed behind exterior cladding to help prevent liquid water from entering the wall assembly. It also helps create a drainage plane so water can move down and out.

Why is flashing important?

Flashing protects vulnerable areas such as windows, doors, roof-wall intersections, decks, and penetrations. It helps direct water away from openings and prevents water from entering the wall assembly.

What is flashing tape used for?

Flashing tape is used to seal and protect window openings, door openings, seams, penetrations, and transitions in the building envelope. It helps connect the WRB and flashing system into a more continuous air and water control layer.

Do I need tape with building wrap?

In many systems, yes. Tape helps seal seams, laps, tears, and transitions in the wrap. Properly taped seams improve continuity and help the wrap perform as part of the broader building envelope system.

What is the difference between an air barrier and a vapor barrier?

An air barrier controls air movement through the building envelope. A vapor barrier slows water vapor diffusion through materials. They are different control layers and should not be treated as the same thing.

Can one product be both a water barrier and an air barrier?

Yes, some products can perform more than one function, depending on how they are installed and detailed. However, the system must be continuous at seams, transitions, windows, doors, and penetrations.

How do I choose the right building envelope products?

Start with the wall or roof assembly, climate, cladding, code requirements, and installation sequence. Then select compatible wraps, tapes, flashing, barriers, insulation, and accessories that work together as a complete system.
