About 33.33 sq ft per bundle; 3 bundles per square (per GAF line specs)

Key features
StainGuard Plus algae-fighting technology on eligible packages (per GAF)
LayerLock with StrikeZone nailing area; UL 2218 Class 3 impact rating for line (per GAF)
Technical specifications
| Thickness | 2.4 in |
|---|---|
| Width | 13.25 in |
| Length | 39.375 in |
| Coverage | 33.33 sq ft/pack |
| Material | Fiberglass-reinforced asphalt architectural laminate |
| Fire rating | UL Class A fire classification (ANSI/UL 790) per GAF Timberline HDZ line documentation |
| Construction type | Laminated architectural strip shingle (Timberline HDZ High Definition) |
| Application area | Steep-slope asphalt shingle roof systems installed per GAF requirements; WindProven limited wind warranty requires qualifying GAF accessory system |
Product details
Roof replacements rarely fail because homeowners dislike the shingle color; they fail when crews underestimate how much performance is locked into installation details and system design.

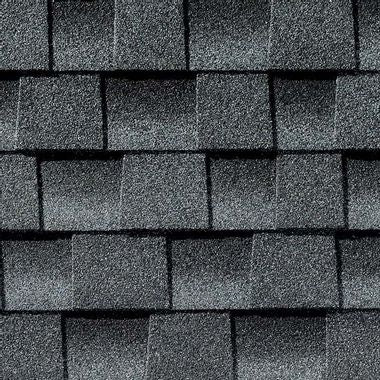

Pewter Gray sits in the cool-neutral family, which is why it is repeatedly chosen when the facade mixes stone, brick, and painted siding: it provides contrast without reading like a flat, single-note cap sheet.
Timberline HDZ is GAF’s high-volume laminated architectural shingle platform. On manufacturer documentation for the line, the product family is associated with UL Class A fire classification and UL 2218 Class 3 impact resistance, along with published ASTM references commonly used in steep-slope asphalt roofing submittals.
For estimating, retailer-facing listings for HDZ commonly quote about 33.33 square feet per bundle and three bundles per square; treat those numbers as planning inputs, then confirm coverage, piece count, and exposure language on the physical bundle label before you lock material orders.
Field outcomes still hinge on fundamentals: consistent nail placement within the documented nail zone, disciplined course offset, clean valley and penetration flashing, and coordinated underlayment selection for the climate and code package.
GAF markets LayerLock Technology and a StrikeZone nailing area as line-level features intended to support alignment and nailing accuracy; WindProven limited wind warranty outcomes are not automatic from the shingle alone and depend on installing a qualifying GAF accessory system per current program rules.
StainGuard Plus algae-fighting technology applies to eligible packages with the appropriate labeling; algae warranty scope, exclusions, and regional availability are defined in GAF’s published warranty documents rather than inferred from marketing headlines.
When you need defensible documentation for inspectors, insurers, or HOA review, use the Timberline HDZ specification sheet revision published by GAF at the time of submittal, and keep photos of bundle markings and delivery tickets with the job file.
Documents & certifications
Technical data sheet
Manufacturer-tested R-value, coverage, fire notes, and handling—use for submittals, RFIs, and field QA.
Download PDF (opens in new tab)Certifications & compliance
UL 790 Class A fire; UL 2218 Class 3 impact resistance; ASTM D3462, D7158, D3161, D3018 Type I (per manufacturer spec sheet for Timberline HDZ line)
